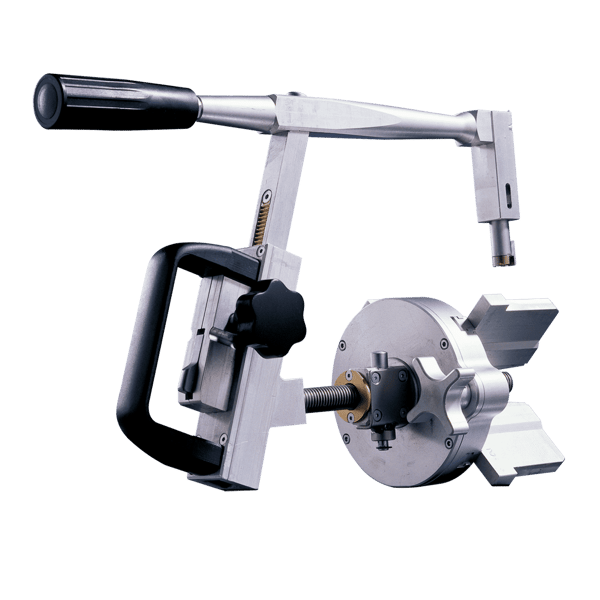

Ritmo RTC Pipe Scraper
Ritmo RTC Pipe Scraper
Brand: Ritmo
Manufacturers:
Description
RTC is a line of Premium orbital pipe scrapers. With their smooth, soft and constant movement, they prepare HDPE and PP pipes for electrofusion welding. The scraping serves to eliminate the oxidation layer formed on the surface of the pipe/fitting by the action of atmospheric agents and ultraviolet (UV) rays.
All models are supplied complete with extensions to cover all workable diameters, a spare blade, a transport case, a handwheel key for fixing to the pipe, a screwdriver for blade replacement, and a utility knife.
Product Features
RTC 160
External working range: Ø 50 ÷ 160 mm (2" IPS ÷ 6" IPS); internal working range: Ø 38 ÷ 154 mm (1.5" ÷ 6"); scraping width: 114 mm (4.5"); dimensions: 380 x 120 x 250 mm (14.9" x 4.7" x 9.8"); weight RTC: 2.50 Kg (5.5 lb).
RTC 315
External working range: Ø 75 ÷ 315 mm (3" IPS ÷ 12" IPS); internal working range: Ø 58 ÷ 300 mm (2.2" ÷ 11.8"); scraping width: 137 mm (5.4"); dimensions: 510 x 310 x 410 mm (20" x 12.2" x 16.1"); weight RTC: 4.50 Kg (9.9 lb).
RTC 710
Equipped with a telescopic blade-holding arm, it allows the scraping of the entire length of the electrical sleeves, useful in the case of on-site repair interventions. External working range: Ø 355 ÷ 710 mm (14" IPS ÷ 28" IPS); internal working range: Ø 290 ÷ 675 mm (11.4" ÷ 26.5"); scraping width: 530 mm (28.7"); dimensions: 825 x 805 x 695 mm (32.5" x 31.7" x 27.3"); weight RTC: 16 Kg (35.8 lb).
