BT2 Trimmers 3” up to 6” Bead Trimmer Heads
| Size | Max ID | Min ID | Shipping Length | Shipping Width | Weight |
| 3" | 3.28" | 2.48" | 17" | 3.5" OD | 5 lbs. |
| 4" | 4.22" | 3.19" | 17" | 4.5" OD | 7 lbs. |
| 5" | 5.22" | 3.94" | 17" | 5.6" OD | 9 lbs. |
| 6" | 6.2" | 4.7" | 17" | 6.6" OD | 13 lbs. |
BT3 Trimmers 8” up to 24” Bead Trimmer Heads
| Size | Max ID | Min ID | Shipping Length | Shipping Width | Weight |
| 8” | 8.06" | 6.12" | 17" | 8.6" OD | 19 lbs. |
| 10” | 10.04" | 7.62" | 17" | " OD | 26 lbs. |
| 12" | 11.92" | 9.04" | 19" | " OD | 40 lbs. |
| 16" | 14.95" | 11.35" | 19" | " OD | 50 lbs. |
| 18” | 16.82" | 12.77" | 19" | " OD | 62 lbs. |
| 20” | 18.69" | 14.19" | 22" | " OD | 79 lbs. |
| 22” | 20.56" | 15.61" | 22" | " OD | 90 lbs. |
| 24” | 22.43" | 17.03" | 22" | " OD | 103 lbs. |
The Bead Trimmer 2 (BT2) system has an adjustable cutter that is designed to operate in a range of pipe sizes. The BT2 head is powered by a manual Tee-handle system. It is most productive to remove the fusion bead during the cooling stage of the fusion process. The use of these tools is very simple and straight forward. It requires no additional tools for complete assembly, operation, and disassembly. The torque tube assembly can be made up in lengths to match the job at had, by adding more torque tubes. This system has been used to retrieve internal beads at a distance of over 250-feet.

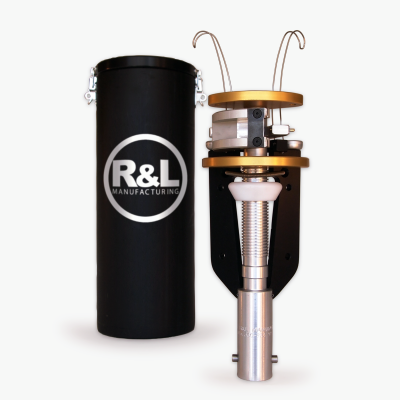

The Bead Trimmer 3 (BT3) is designed to remove the fusion bead from the inside of HDPE pipe during installing, and can remove fusion beads in old existing systems too! Each BT3 head is designed to IPS diameters from 3" up to 24" pipe. The BT3 Head has an adjustable range to match SDR 7.3 up to SDR 32.5 with every called out pipe diameter. The heads are powered by a manual Tee-Handle Package system which has a reach up to 51-feet, and by adding more torque tubes, fusion beads as far as 500-feet in smaller pipe diameters can be removed. All the Bead Trimmer heads are interchangeable with our Handle Packages.
The Bead Trimmer 2 (BT2) system has an adjustable cutter that is designed to operate in a range of pipe sizes. The BT2 head is powered by a manual Tee-handle system. It is most productive to remove the fusion bead during the cooling stage of the fusion process. The use of these tools is very simple and straight forward. It requires no additional tools for complete assembly, operation, and disassembly. The torque tube assembly can be made up in lengths to match the job at had, by adding more torque tubes. This system has been used to retrieve internal beads at a distance of over 250-feet.
The Bead Trimmer 3 (BT3) is designed to remove the fusion bead from the inside of HDPE pipe during installing, and can remove fusion beads in old existing systems too! Each BT3 head is designed to IPS diameters from 3" up to 24" pipe. The BT3 Head has an adjustable range to match SDR 7.3 up to SDR 32.5 with every called out pipe diameter. The heads are powered by a manual Tee-Handle Package system which has a reach up to 51-feet, and by adding more torque tubes, fusion beads as far as 500-feet in smaller pipe diameters can be removed. All the Bead Trimmer heads are interchangeable with our Handle Packages.
