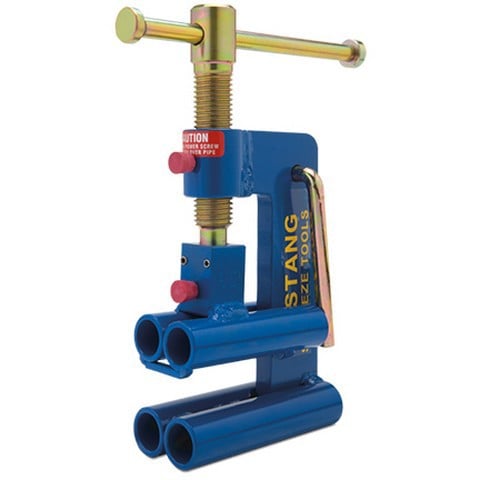

The smallest tool in Mustang’s lineup, the DBS-10A employs an open frame design, which permits easy application on service PE pipe.
Similar in size and design to the DBS-10A, the DBS-11A employs a Flat-Bar design to service size PE pipe with a less than smooth interior surface finish. The flat-bar design applies more contact area on the pipe and produces a larger sealing surface. Higher hand torque is required and limits the tool range to 3/4” IPS maximum.
Gap stops are welded to the upper jaw and grease fittings are provided for power screw and thrust bearing lubrication.
Static electric grounding is accomplished using a SEG-30 Grounding Rod attached to the upper jaw.
Product Features
When ordering, please specify one (1) pipe size and SDR. See chart below.
Note: SEG-30 (grounding kit) will be needed for use with tool.
DBS-10A = weight: 6 lbs, dimensions: 8.75” height.
DBS-11A = weight: 5 lbs, dimensions: 8” height.
| Pipe Size | Nominal Wall Thickness | SDR | Gap Stop | % Max Squeeze |
| 1/2" CTS | 0.090 0.104 | 7 6 | 0147 0.172 | 22 21 |
| 1/2" IPS | 0.090 | 9.3 | 0.155 | 18 |
| 3/4" CTS | 0.077 0.090 | 11 9.7 | 0.125 0.155 | 24 18 |
| 3/4" IPS | 0.095 | 11 | 0.155 | 25 |
| 1" CTS | 0.090-0.101 | 11-12.5 | 0.155 | 29 |
| 1" IPS | 0.119 | 11 | 0.210 | 22 |
| 1-1/4" CTS | 0.090 0.121 | 15 11 | 0.155 0.210 | 21 19 |
For replacement parts, contact [email protected].
