Includes a pair of SC-60 saddle clamps. Weight: 80 lbs. Dimensions: 26” height.
| Pipe Size | Nominal Wall Thickness | SDR | Gap Stop | % Max Squeeze |
| 3" IPS | 0.259 0.307-0.318 0.389 | 13.5 11-11.5 9 | 0.435 0.500 0.625 | 26 29 26 |
| 4" IPS | 0.333 0.395-0.409 0.500-0.548 | 13.5 11-11.5 9 | 0.560 0.675 0.800 | 25 26 24 |
| 6" IPS | 0.427 0.491 0.568-0.602 | 15.5 13.5 11-11.5 | 0.725 0.813 1.000 | 22 26 26 |
For replacement parts, contact sales@groebner.com.

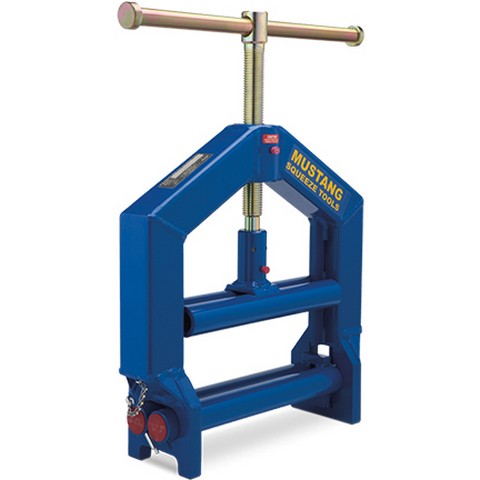

The Mustang Model DBG-60 has been reintroduced to provide an economical tool with which to squeeze up to 6” diameter SDR 11 pipe. The double-bar lower jaw has two sets of gap stops for the two pipe sizes of your choice.
The same rugged design as used in all Mustang tools is utilized to provide maximum strength, lighter weight, and superior performance.
Nearly identical to is’ “big brother” the DBGA-80, the DBG-60 features the same proven tubular frame, powerful Acme Power Screw and Upper Jaw Thrust Bearing with grease fittings for lubricating the screw and thrust bearing.
The Mustang Model DBG-60 has been reintroduced to provide an economical tool with which to squeeze up to 6” diameter SDR 11 pipe. The double-bar lower jaw has two sets of gap stops for the two pipe sizes of your choice.
The same rugged design as used in all Mustang tools is utilized to provide maximum strength, lighter weight, and superior performance.
Nearly identical to is’ “big brother” the DBGA-80, the DBG-60 features the same proven tubular frame, powerful Acme Power Screw and Upper Jaw Thrust Bearing with grease fittings for lubricating the screw and thrust bearing.
