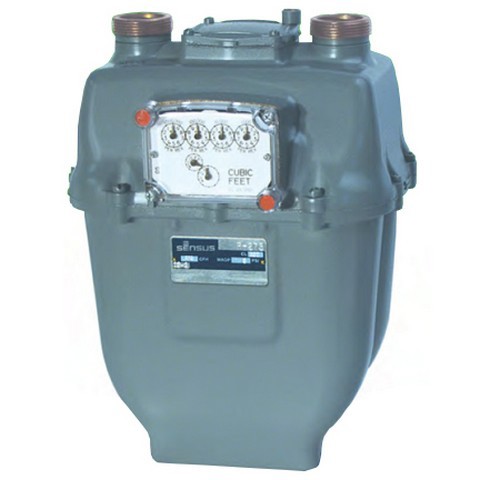

The R-275 is a Class 250 residential diaphragm gas meter that combine the latest design concepts and modern engineering materials. Lighter weight and easy to handle, they are more durable, require less maintenance and offer greater life expectancy than previous meters in this class.
The temperature compensation element has increased strength to minimize deflection from valve drag. A simplified crank bracket provides accurate positioning of the crank support, and its low-friction polymer material eliminates the need for lubrication. Close tolerances and molded phenolic construction of the valve seat provide smoother operation and minimize wear. The R-275 meters also accommodate external valve guides, which are easily installed in these meters.
Our revolutionary, patented accuWAVE diaphragm is now standard on the R-275 meters. This design has a longer life expectancy, improved long-term performance - even in extreme conditions - exceptional proof stability and a lower overall lifetime cost
Specifications:
- Capacity (ft³/h): Natural gas, 275 / Butane, 150 / Propane, 175 / Air, 215
- MAOP: 5-10 psi
- Weight: 14 lbs.
- Connections: 10, 20, 30 Lt. / 1 ¼, 1A & #2 Spg.
- Revolutions: 8 ft³
