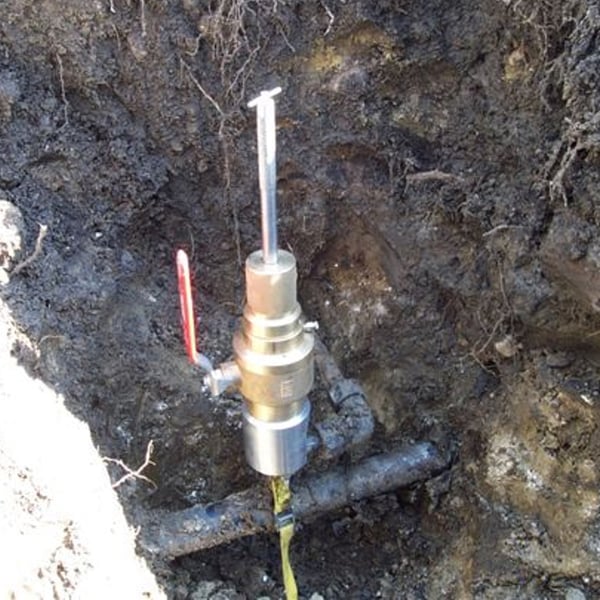

Mazco Safe-T-Stopper is specifically designed to allow for open gut, pipe tees, street tees and NO-BLO service tee stopping or tee removal without hazardous release of natural gas. Simply mount the Mazco tool over the tee, remove the cap or plug, set an expandable plug below the branch & remove the tool.
Service tee connections can be put back in service or removed without the hazardous release of the contained product. Safe-T-Stopper can also be used to change out faulty full port valves with no release of gas. Virtually any service line stopping or service tee upgrades are done safely and efficiently with the Mazco Safe-T-Stopper.
The Mazco Safe-T-Stopper 3000BV Base Tool is available in either a Standard or Enhanced option. The Enhanced Base Tool will insert rubber plugs, self-tapping plugs, and perform all Safe-T-Stopper operations without requiring additional tooling with selected adapter packages.
By adding the applicable "Adapter Kit - Tee" to the 3000BV Base Tool, it can operate on Cap Tees, Plug Tees, Saddle Punch Tees, Mueller Tees, Elbow Service Tees, and Flapper Tees.
Parts included in Enhanced vs. Standard:
|
Description |
Part# |
Enhanced Qty. |
Standard Qty. |
|
All Weatherproof Custom Case |
54-BASETOOL |
1 |
1 |
|
3" Ball Valve |
54-MSTS1005A |
1 |
1 |
|
Pressure Test Assembly |
54-PTSS |
1 |
1 |
|
3000 T-Handle Housing |
54-MSTS1007A |
1 |
1 |
|
2530 24" T-Handle Shaft |
54-MSTS100824 |
1 |
1 |
|
T-Handle Ball |
54-MSTS1019 |
1 |
1 |
|
3000 Expansion Plug Housing |
54-MSTS1007C |
1 |
1 |
|
2530 Expandable Plug Shaft |
54-MSTS1010A |
1 |
1 |
|
Lock Out Plug |
54-MSTS1014A |
1 |
1 |
|
3/4" - 1 1/4 Pipe Type Tee Reducer Adapter |
54-TR3MX25F |
1 |
1 |
|
Viewport 3000BV |
54-MSTS1070 |
1 |
1 |
|
3000 Extension Housing |
54-MSTS1032 |
2 |
0 |
|
Safety Strap |
54-MSTS1018 |
1 |
1 |
|
5/16" Hex Adapter |
54-TPA312 |
1 |
0 |
|
1/2" Hex Adapter (1 Piece 24"L Shaft) |
54-TPA50024 |
1 |
0 |
|
16” Socket Wrench (Heavy Duty / ½” Drive) |
54-53125A82 |
1 |
0 |
|
5/8” Socket (1/2" Drive) |
54-5545A16 |
1 |
0 |
|
Magnet (6" long) |
54-MSTS1015C |
1 |
1 |
|
PLCS Lubricant |
54-PLCSLUBE |
1 |
1 |
|
1/8" T Handle Hex Wrench |
54-MSTS1221 |
1 |
1 |
|
3/16” T Handle Hex Wrench |
46-A0017 |
1 |
1 |
|
9/16" Ratchet Combination Wrench |
54-916 |
1 |
1 |
|
Intrinsic Pen Flashlight |
52-WF05E |
1 |
1 |
|
Pipe Break |
54-PPBRK |
1 |
1 |
|
Thread Tape |
54-44945K11 |
1 |
1 |
|
Bar Wrench |
54-MSTS 1004W |
1 |
1 |
|
Flange Nuts 10 Pack |
54-94612A103 |
1 |
1 |
