The 200 series is used in applications where pressure reduction is required. The regulator will reduce the risk of “shock” from abrupt changes of downstream conditions. This can help prevent safety equipment from shutting an operation down. The 200 series commercial regulators have a large capacity with an outlet pressure option up to 10 psi.

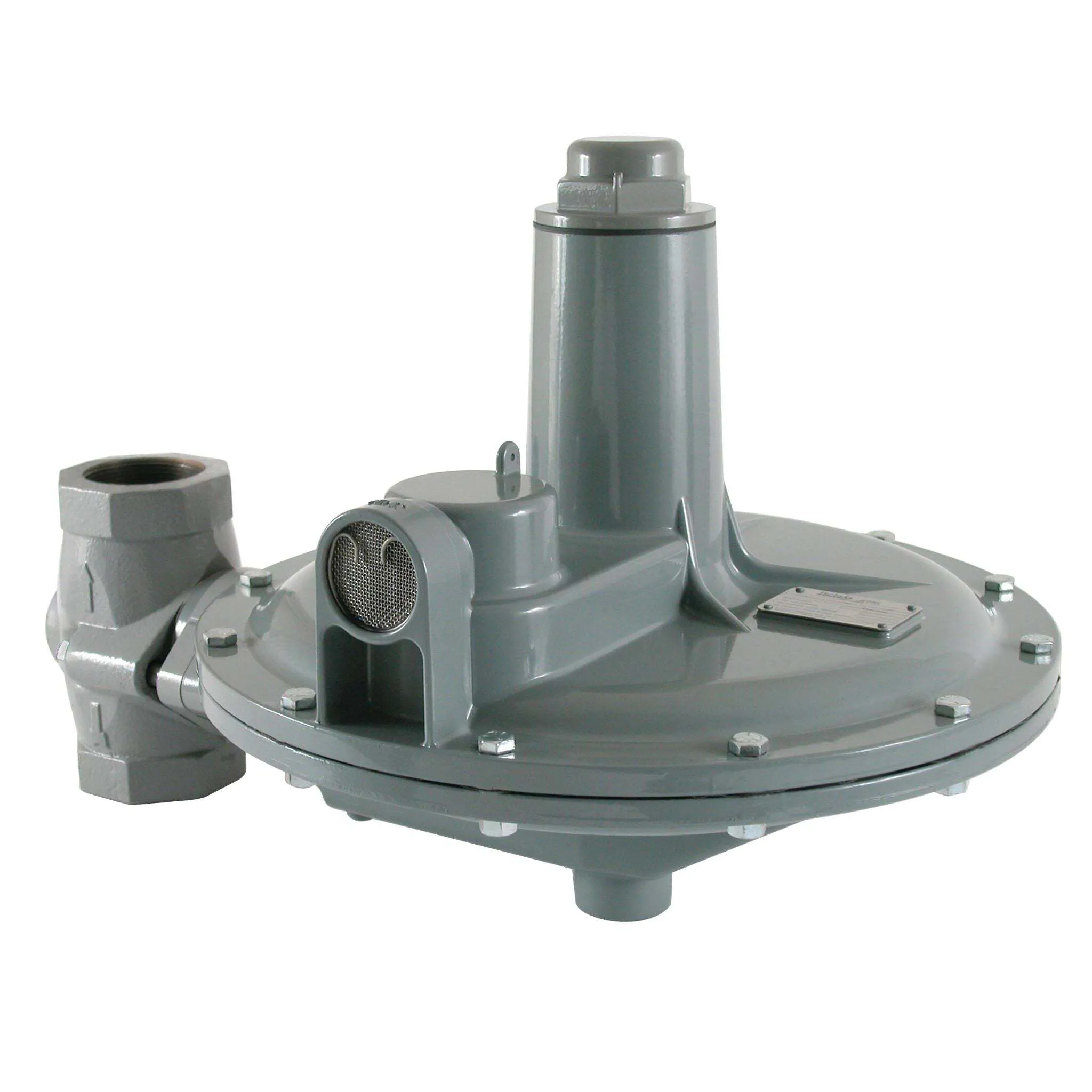

The BelGAS P202 is a relieving, manual, direct acting, self-operating, spring loaded adjustable regulator, used in applications where pressure reduction is required. It comes equipped with an internal relief valve.

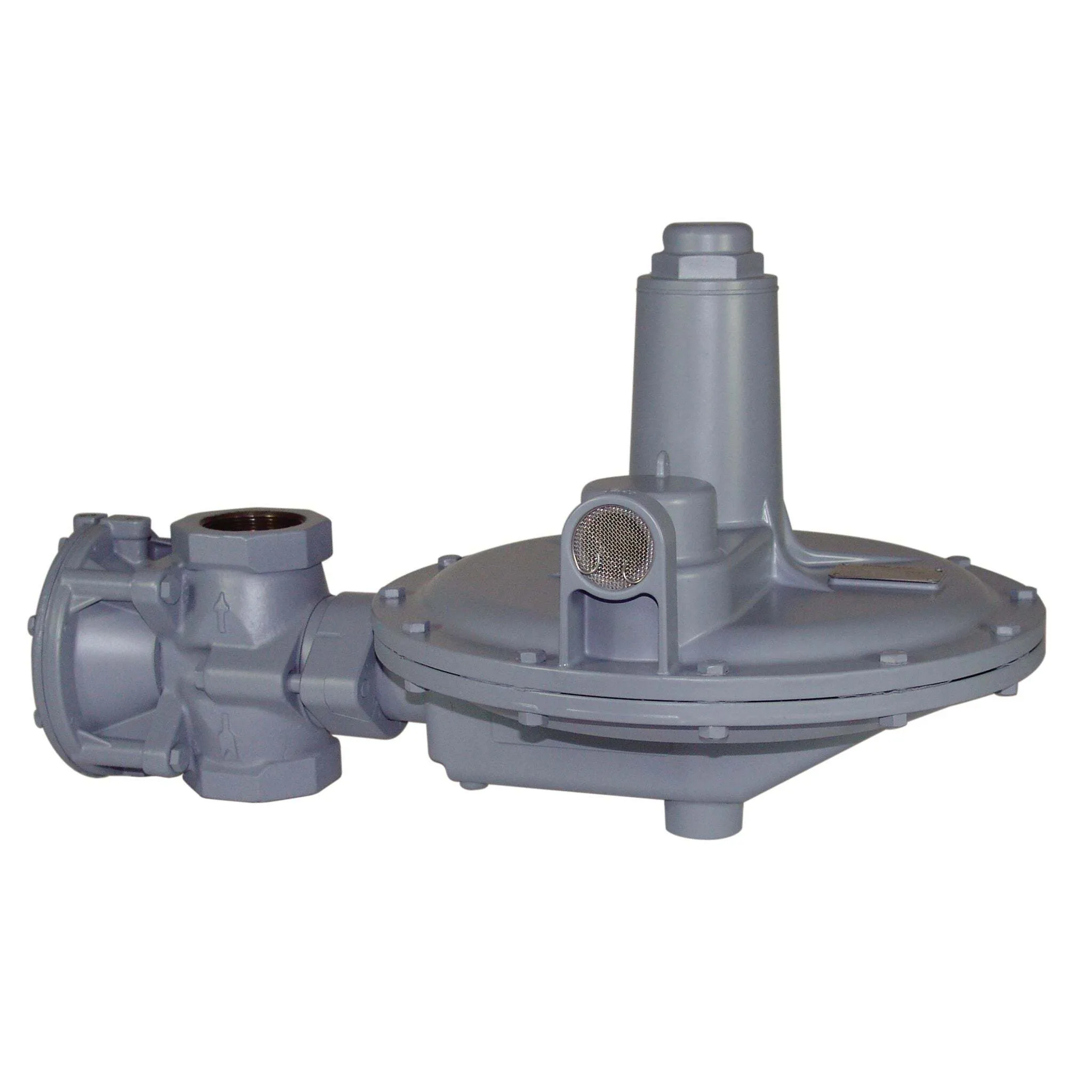

The BelGAS P203 gas pressure reducing regulator is available with a true monitor regulator, which acts independently of the main regulator. The monitor provides equivalent overpressure protection when compared to a standard two-regulator monitor setup. Should one regulator fail, the other regulator provides control and overpressure protection.

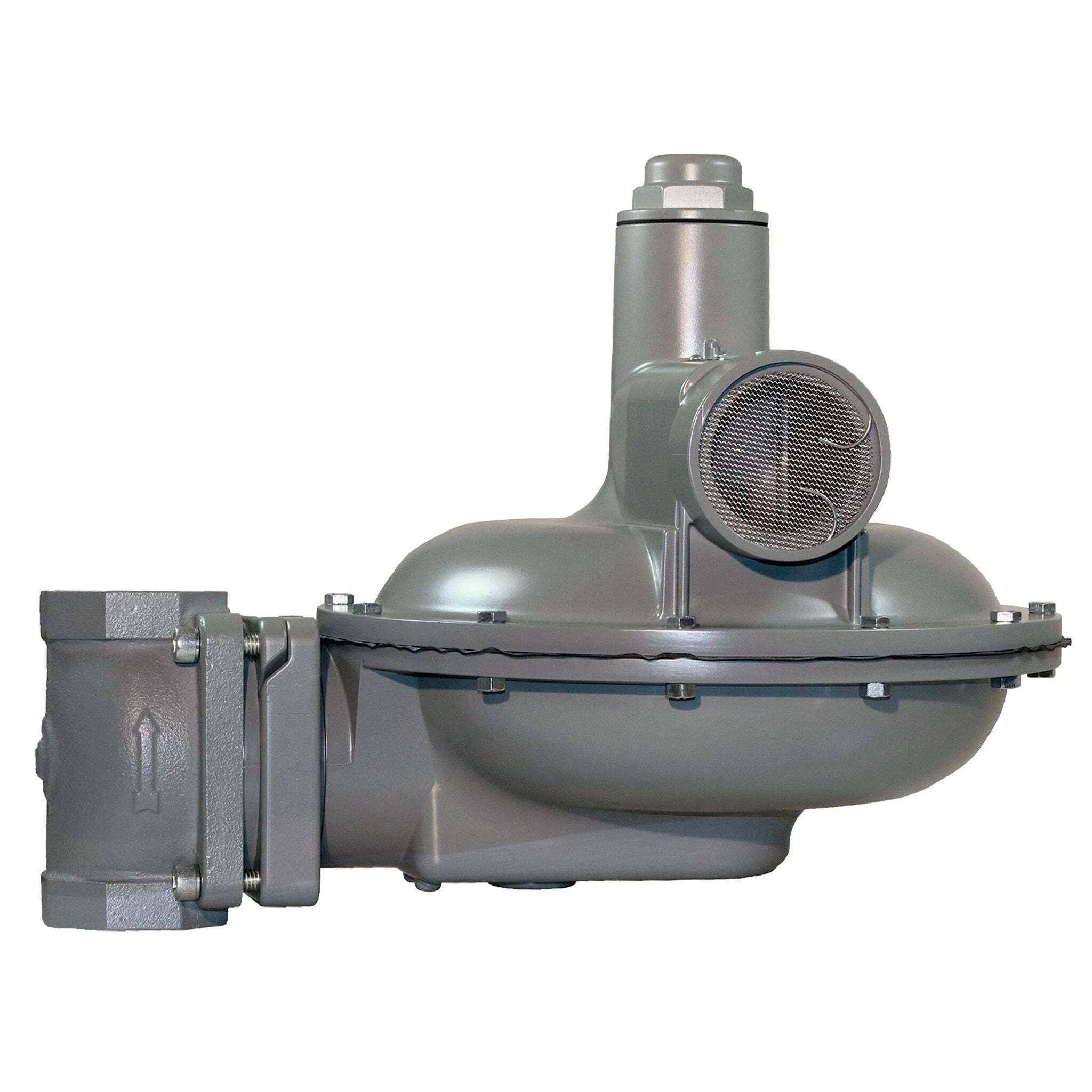

The BelGAS P212 gas pressure regulator is a direct operating, spring-loaded adjustable regulator, used in applications where pressure reduction is required. The P212 is built on the reliable and time-proven P202 platform and has been enhanced to offer a full relieving regulator through the diaphragm relief device. When used with a 2.5? bonnet vent port, the P212 becomes a fully relieving pressure regulator.

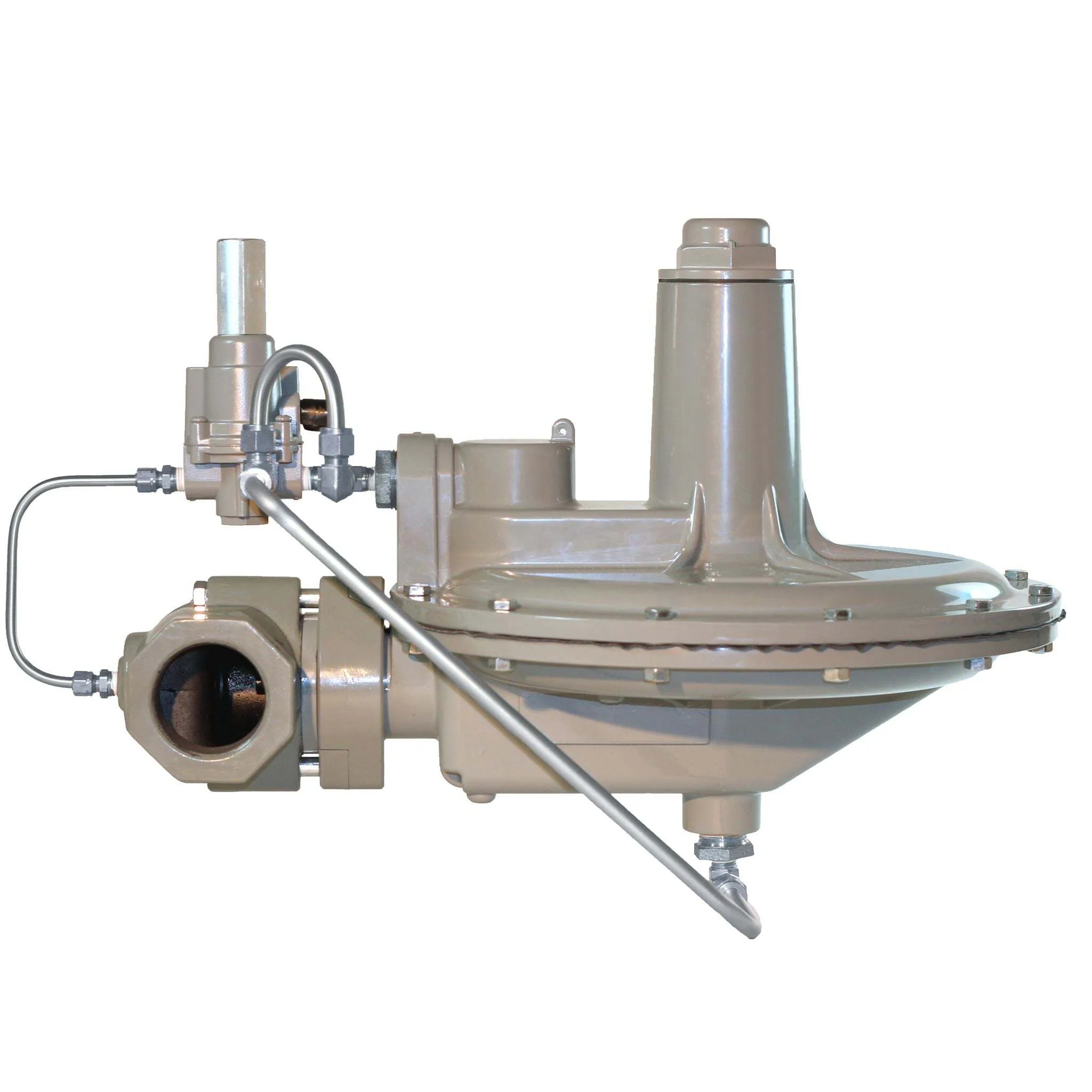

The BelGAS F200 Pilot Operated Gas Pressure Regulator is a manual, direct acting, self-operating, spring loaded, adjustable gas pressure regulator. It is ideal for fix factor billing.
The 200 series is used in applications where pressure reduction is required. The regulator will reduce the risk of “shock” from abrupt changes of downstream conditions. This can help prevent safety equipment from shutting an operation down. The 200 series commercial regulators have a large capacity with an outlet pressure option up to 10 psi.
The BelGAS P202 is a relieving, manual, direct acting, self-operating, spring loaded adjustable regulator, used in applications where pressure reduction is required. It comes equipped with an internal relief valve.
The BelGAS P203 gas pressure reducing regulator is available with a true monitor regulator, which acts independently of the main regulator. The monitor provides equivalent overpressure protection when compared to a standard two-regulator monitor setup. Should one regulator fail, the other regulator provides control and overpressure protection.
The BelGAS P212 gas pressure regulator is a direct operating, spring-loaded adjustable regulator, used in applications where pressure reduction is required. The P212 is built on the reliable and time-proven P202 platform and has been enhanced to offer a full relieving regulator through the diaphragm relief device. When used with a 2.5? bonnet vent port, the P212 becomes a fully relieving pressure regulator.
The BelGAS F200 Pilot Operated Gas Pressure Regulator is a manual, direct acting, self-operating, spring loaded, adjustable gas pressure regulator. It is ideal for fix factor billing.
